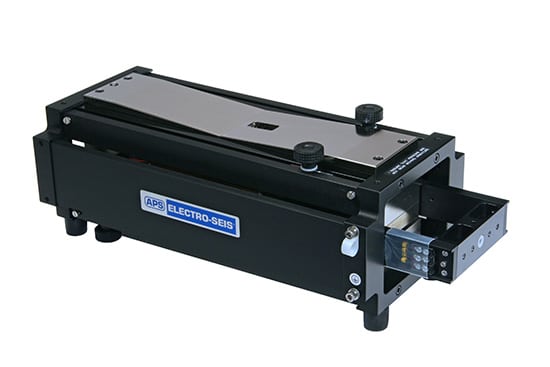

APS 113-AB | Long Stroke Shaker with Linear Air Bearings

The APS 113-AB is a long stroke, electrodynamic force generator with air bearing specifically designed to calibrate and evaluate accelerometers and displacement transducers due to its low excitation frequency. It is also designed with air lubricated bushing for measuring resonance decay in a lightly damped structure.

 Key Specification:

• Maximum force: 186N
• Maximum Stroke length: 158mm
• Frequency: DC – 200Hz
• 36kg total weight
