BTM/BTMC series | Bolt strain gauges

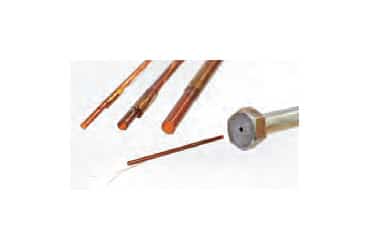

Used for tensile strain measurement of bolt, the BTM/BTMS strain gauges can be easily bonded into the pre-drilled hole in the bolt with exclusive adhesive. This method is developed as an ordinary strain gauge cannot be mounted on the bolt surface. They are available as two models depending on the type of adhesive used for installation; heat curing A-2 adhesive for BTM gauges and fast-curing CN adhesive for BTMC gauges. These gauges are not self-temperature compensated
| Operating temperature |
: -10oC - +80oC |
| Applicable specimen |
: Bolt |
| Temp. compensation materials |
: N/A |
| Temp. compensation range |
: N/A |
| Strain limit |
: 5000 x 10-6 strain |
| Gauge pattern |
Model |
Gauge length (mm) |
Gauge center (mm) |
Backing length (mm) |
Backing Width (mm) |
Resistance (Ω) |
|
BTM series |
1 - 6 |
0.7 - 1 |
5.6 - 12 |
1.4 – 1.7 |
120 |
|
BTMC series |
0.5 - 3 |
5 - 10 |
Φ0.9 – 1.9 |
120 |
