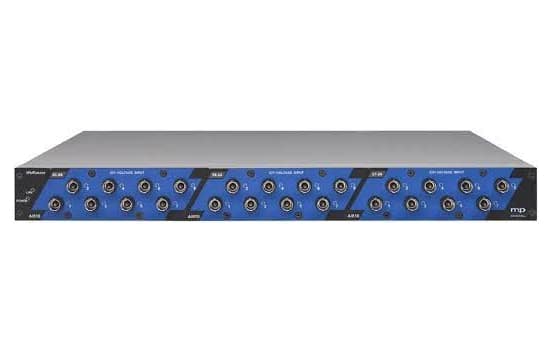

m+p VibRunner | Controller for Vibration Engineering and Data Acquisition
The m+p VibRunner offers a higher channel count for supporting noise and vibration engineering applications with an excellent price-to-performance ratio. The mainframe unit can be designed to suit mobile operation as desktop unit or supplied with mounting bracket for 19” rack mounting. The VibRunner has its own power supply for standalone operation and compatible with power of Ethernet to support reliable and fast communications for high number of measurement channels.
Key features:
- Desktop or Rack-mounting configuration
- Silent-operation, temperature controlled fan
- 8-24 analog input channels, single-ended or differential
- 8kZ simultaneous sampling rate, 24-bit
- User-selectable IEPE signal conditioning
- TEDS-compatible
- 8 channels bridge measurement modules
- 2-12 tacho inputs
- 8 Digital inputs and 8 digital outputs
- Vibration control on electrodynamic and hydraulic shakers, all test modes supported
- Multi-axis vibration testing
- Multi-channel, high-end vibration testing
- Pyro-shock capture
- Data reduction and time data recording (throughput to disk) in aerospace
- Vibration monitoring and overtest protection
- Noise and vibration measurement
- Structural testing, modal analysis, impact testing
- Ultrasonic measurements
- Sonar
- Data acquisition and condition monitoring
- Strain measurements
- Test stand engineering
