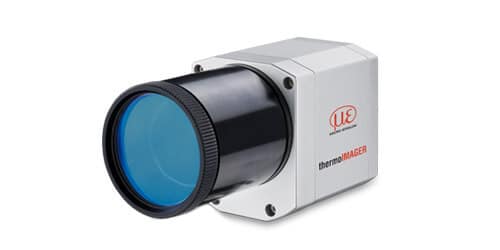

TIM M05 | Infrared camera for temperature measurement of molten metal

The thermal imager TIM M05 is specially designed for measuring the temperature of molten metals or metallic surfaces from 900oC to 2000oC. The TIM M05 operates at a wavelength range of 500nm to 540nm to minimize the measurement errors as the object emissivity is often unknown at high temperature. The lens detector is consisted of highly dynamic CMOS detector. This feature enables the camera to provide a high optical resolution capture that can be adapted to respective applications.

Key features:

• Measurement range: 900oC to 2000oC
• 764 x 480 pixels optical resolution
• Spectral range of 0.5-0.54µm
• Frame rate: 1kHz
