Operating based on ThruBeam principle, The optoControl laser optical micrometers can be used for measuring dimensional properties such as diameter, gap, height, position in a wide range of industrial applications including production, quality assurance and services.
The transmitter generates a parallel light curtain that is transmitted via a lens arrangement into the receiving unit. The beam is interrupted if there is an object in the light path. The shadow generated by this object is recorded by the receiving optical system and generate output is a geometric value.
All components in the laser micrometers are wear free and offers reliability for long service. The sensors can be modified to include customized cable lengths, reduced light source or even deflected mirror to fit installation in tight and restricted space. These features offer many flexibility for applications in industrial manufacturing process.
-

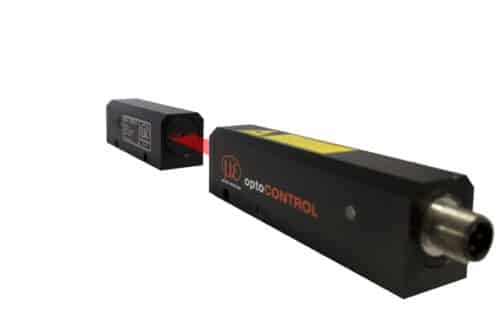

optoCONTROL 1200 | Miniature laser micrometer
View Product -

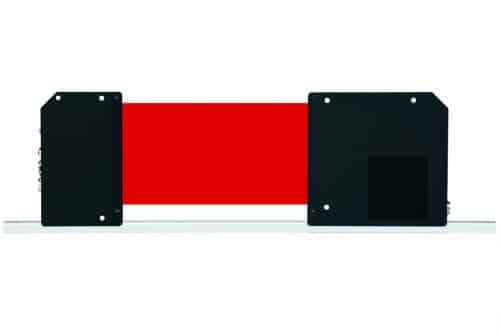

optoCONTROL 1202 | Laser micrometer with large measuring range
View Product -

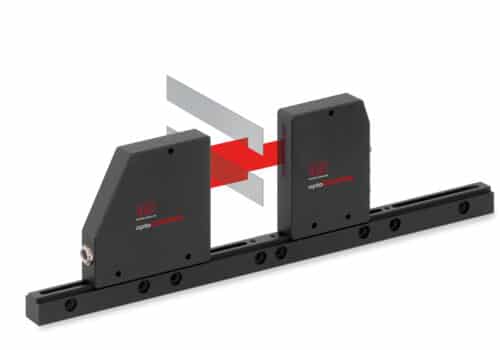

optoCONTROL 1220 | Inline laser micrometer
View Product -

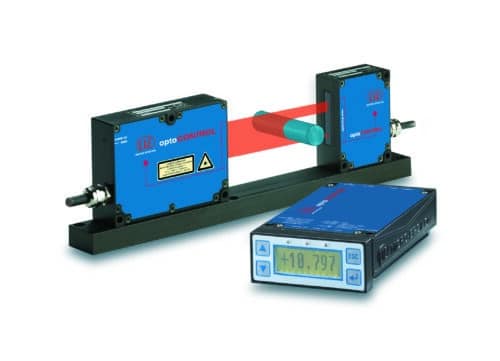

optoCONTROL 2500 | High speed laser micrometer
View Product -

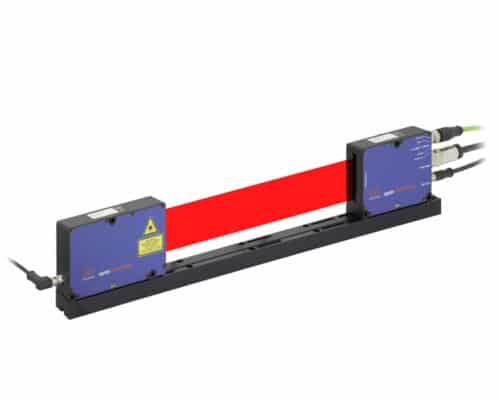

optoCONTROL 2520 | Compact optical precision micrometer
View Product -

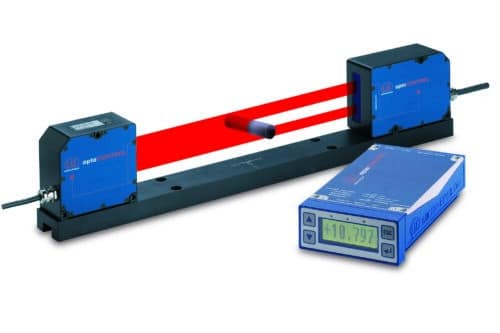

optoCONTROL 2600 | High resolution LED micrometer
View Product
